  • Product Description

  • Brief Views

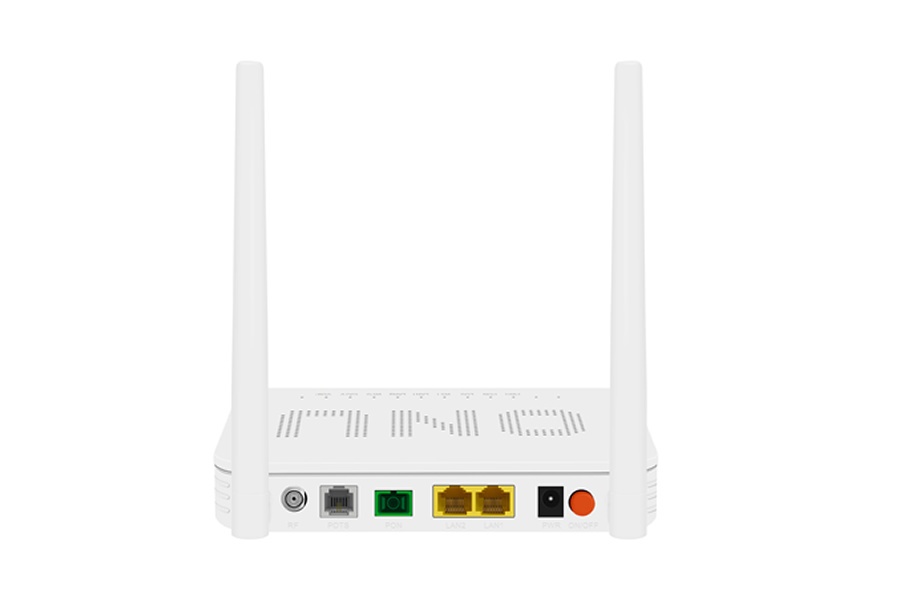

    YTONU-3412-2G dual-mode ONU supports EPON and GPON two modes access. The ONU automatically switches into the corresponding PON mode by identifying the local OLT mode to complete GPON or EPON adaptive access.

    YTONU-3412-2G is based on the mature, stable, high cost performance XPON technology, gigabit Ethernet switching, WDM and HFC technology. It has a higher bandwidth, higher reliability, easy management and good quality of service (QoS) guarantee. It fully meets the ITU-T and IEEE technical standards and have good compatibility with third party OLT.

    YTONU-3412-2G has one PON port, one 10/100/1000BASE-T and three 10/100BASE-T ports, support CATV, VOIP and 802.11a/b/g/n Wi-Fi function.

    The device shell adopts personalized ventilation design, simple, fashion, steady. High quality environmental protection material is impact resistant, high temperature resistant and good heat dissipation effect to providing users with a more secure Internet environment..

     Functional Feature

    1. Single-fiber access, provides internet, WIFI, VOIP multiple service
    2. In compliant with IEEE802.3ah and ITU - T G.984 standard
    3. Support ONU auto-discovery/Link detection/remote upgrade of software
    4. Support SN and LOID+Password multiple registration methods
    5. Support port VLAN configuration
    6. Support port-based rate limitation and bandwidth control
    7. Support MAC address learning
    8. Support MAC address learning account limit
    9. Support VLAN transparent/tag/translate/trunk
    10. Support broadcasting storm resistance function
    11. Support igmp transparent/snooping/proxy mode
    12. Support Dynamic Bandwidth Allocation (DBA)
    13. Support AES encryption and decryption
    14. Support power-off alarm function ,easy for link problem detection
    15. Support MAC address/URL filter
    16. Support remote WEB/Telnet access control
    17. Support remote CATV port management
    18. EMS



    Product interface and LED definitions

    Product interface:

    interface

    Description

    1

    ON/OFF

    Power turn on/off

    2

    PWR

    Connect with power adapter (DC12 V)

    3

    POTS

    Connect the telephone with FXS port by telephone wire

    4

    LAN 1~2

    RJ45 Port connects to local internet

    5

    PON

    Connect PON port with internet by SC type, single mode optical fiber cable

    6

    RF

    CATV RF port



    LED definitions:

    Indicator

    Description

    1

    PWR

    On: ONU power supply normally

    Off: ONU no power supply

    2

    PON

    On: ONU link active

    Blink: ONU manage to link

    Off: ONU receiving power rate lower than optical receiver sensitivity

    3

    LOS

    Blink: Device does not receive optical signals

    Off: Device has receivedoptical signal

    4

    LAN1~2

    On: network port linked, but no data transmitting

    Blink: network port data pass

    Off: ONU no power supply or internet cable unlink

    5

    WIFI

    On: WiFi turn on

    Blink: WiFi turn on and with ongoing data transmission

    Off: Device is power off or WiFi turn off

    6

    CATV

    On: CATV optical normal

    Off:The CATV signals are not received

    7

    VOIP

    On: POTS port registered

    Off: POTS port not registered



    Specification

    Item

    Parameter

    PON Interface

    1. Single mode single fiber
    2. GPON：FSAN G.984.2 standard,Class B+
    3. EPON：1000BASE-PX20+ symmetric
    4. GPON：2.488Gbps/1.244Gbps downstream/upstream
    5. EPON：1.25Gbps downstream/upstream
    6. Wavelength : Transmit: 1310nm   Receiver: 1490nm
    7. Receiving sensitivity :

    GPON：-28dBm     EPON：-27dBm

    1. Saturated power :

    GPON：-8dBm      EPON：-3dBm

    1. Transmitting power :

    GPON：0.5～5dBm  EPON:0～4dBm

    WIFI

    1.  WIFI performance parameters
    2. IEEE802.11b/g/n
    3. 40Mhz bandwidth maximum rate 300Mbps
    4. ERIP:17dBm
    5. Wireless
    6. 4*SSID
    7. Choose channel automatically

    POTS

    1. Support G.711 A/U,G729A/B,G.723.1-5.3/6.3,G.726.etc.voice coding/compressed technology
    2. support SIP voice protocol

    ISP provide the port number of the main SIP proxy server and terminal VOIP. Value range is 1-65535, system default value is 5060.

    1. support H.248 voice protocol

    ISP provide the port number of the spare MGC server and VOIP terminal. Value range is 1~65535, system default value is 2944.

    1. Port type POTS(VOIP)

    CATV

    1. Wavelength: 1550nm
    2. Input optical power: -18dBm～0dBm(with AGC)
    3. RF frequency: 47MHz~1000MHz
    4. RF output level: 78dBuV (@-12~-2dBm@85MHz) (with AGC)
    5. RF output return loss: >12dB(with AGC)
    6. RF impedance: 75Ω

    User Interface

    1. 1*10/100/1000M+1*10/100M auto-negotiation RJ45 ports
    2. 1*RF port
    3. 1*RJ11 port

    Business
    Capability

    1. L3
    2. IPv4/IPv6 Dual Stack
    3. NAT
    4. DHCP client/server
    5. PPPOE client/ Pass through
    6. Static and dynamic routing
    7. Multicast
    8. IGMP V2
    9. IGMP VLAN
    10. IGMP transparent/Snooping/Proxy
    11. Security
    12. Firewall
    13. MAC address/URL filter
    14. Remote WEB/Telnet access control
    15. Switch
    16. MAC address learning
    17. MAC address learning account limit
    18. Port flow control
    19. Broadcast storm suppression
    20. VLAN transparent/tag/translate/trunk

    Network
    Management

    1. EPON :OAM / WEB / Telnet
    2. GPON:OMCI / WEB / Telnet

    Power Interface

    1. 12V DC Power supply
    2. Power consumption: <10W

    Dimensions

    1. 162mm(L)*112mm(W)*30mm (H)

    Environmental
    Specifications

    1. Operating temperature: 0 to 40ºC
    2. Operating humidity: 10% to 90%(Non-condensing)



    Network application

    1. Typical Business：Internet、WIFI、CATV
    2. Typical Solution：FTTH

    Figure: YTONU-3412-2G Application Diagram
