    YTONU-3414-1 dual-mode ONU supports EPON and GPON two modes access. The ONU automatically switches into the corresponding PON mode by identifying the local OLT mode to complete GPON or EPON adaptive access.

    YTONU-3414-1 have a high reliability and provide quality of service guarantee、easy management, flexible expansion and networking. It’s fully meet the ITU-T technical standards and have good compatibility with third party manufacturers OLT.

    YTONU-3414-1 has one PON port ,one 10/100/1000BASE-T+three 10/100BASE-T ports.The device shell adopts personalized ventilation design, simple, fashion, steady. High quality environmental protection material is impact resistant, high temperature resistant and good heat dissipation effect to providing users with a more secure Internet environment.





     Functional Feature

    1. In compliant with IEEE802.3ah and ITU - T G.984 standard
    2. Support ONU auto-discovery/Link detection/remote upgrade of software
    3. Support multiple registration methods
    4. Support port VLAN configuration
    5. Support mac-address learning
    6. Support port-based rate limitation and bandwidth control
    7. Support port flow-control
    8. Support broadcasting storm resistance function
    9. Support igmp transparent/snooping/proxy mode
    10. Support Dynamic Bandwidth Allocation (DBA)
    11. Support three layer routing function
    12. EMS
    13. Support power-off alarm function ,easy for link problem detection

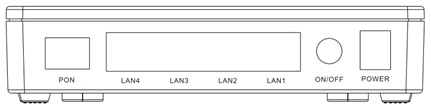

    Product interface and LED definitions



    Product interface:

    interface

    Description

    1

    POWER

    Connect with power adapter (DC12 V)

    2

    ON/OFF

    Power turn on/off

    3

    LAN 1~4

    RJ45 Port connects to local internet

    4

    PON

    Connect PON port with internet by SC type, single mode optical fiber cable



    LED definitions:

    Indicator

    Description

    1

    PWR

    On: The ONT is power on;

    Off: The ONT is Power off;

    2

    PON

    On: Success to register to OLT;

    Blinking: In process of registering to OLT;

    Off:Failed to register to OLT or no normal optical signal input;

    3

    LOS

    On: Optical power lower than receiver sensitivity;

    Off: Optical in normal;

    4

    LAN1~4

    On: Ethernet connection is normal;

    Blinking: Data is being transmitted through the Ethernet port;

    Off: Ethernet connection is not set up;

    Specification

    Item

    Parameter

    PON Interface

    1. Single mode single fiber
    2. GPON：FSAN G.984.2 standard,Class B+
    3. EPON：1000BASE-PX20+ symmetric
    4. GPON：2.488Gbps/1.244Gbps downstream/upstream
    5. EPON：1.25Gbps downstream/upstream
    6. Wavelength : Transmit: 1310nm   Receiver: 1490nm
    7. Receiving sensitivity : GPON：-28dBm     EPON：-27dBm
    8. Saturated power : GPON：-8dBm      EPON：-3dBm
    9. Transmitting power : GPON：0.5～5dBm  EPON:0～4dBm



    User Ethernet
    Interface

    1. 1*10/100/1000M and 3*10/100M auto-negotiation RJ45 ports
    2. Full Duplex / Half-Duplex
    3. RJ45, Auto-MDI/MDI-X
    4. Transmission Distance 100 Meter

    Business
    Capability

    1. Register
    2. Auto-discovery/Link detection/Remote upgrade software
    3. Auto/MAC/SN/LOID+Password authentication
    4. Switch
    5. MAC address learning
    6. MAC address learning account limit
    7. Broadcast storm suppression
    8. VLAN transparent/tag/translate/trunk
    9. Multicast
    10. IGMP V2
    11. IGMP VLAN
    12. IGMP transparent/Snooping/Proxy
    13. Security
    14. Firewall
    15. MAC address/URL filter
    16. Remote WEB/Telnet access control



    Network
    Management

    1. EPON :OAM / WEB / Telnet
    2. GPON:OMCI / WEB / Telnet

    Power Interface

    1. 12V DC Power supply
    2. Power consumption: <7W

    Dimension

    1. 125mm(L) x 85mm(W) x 25mm (H)

    Environmental
    Specifications

    1. Operating temperature: 0 to 40ºC
    2. Operating humidity: 10% to 90%(Non-condensing)

    Network application

    1. Typical Business：Internet
    2. Typical Solution：FTTH

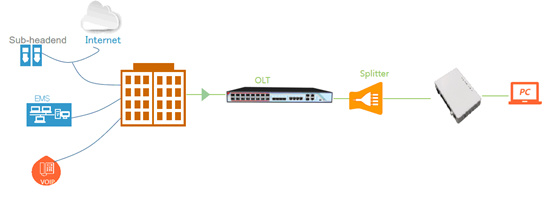

    Figure: YTONU-3414-1 ONU Application Diagram



    Ordering Information

    Product Name

    Product Model

    Descriptions

    1GE+3FE

    YTONU-3414-1

    1*10/100/1000M +3*10/100M Ethernet interface, 1*PON interface , plastic casing, external power supply adapter
