    YTONU-3412-1W dual-mode ONU supports EPON and GPON two modes access. The ONU automatically switches into the corresponding PON mode by identifying the local OLT mode to complete GPON or EPON adaptive access.

    YTONU-3412-1W integrates wireless function which meets 802.11 b/g/n technical standards. It has two external high gain omnidirectional antennas, the wireless transmission rate up to 300Mbps. It has the characteristics of strong penetrating power and wide coverage. It can provide users with more efficient data transmission security.

    The device shell adopts personalized ventilation design, simple, fashion, steady. High quality environmental protection material is impact resistant, high temperature resistant and good heat dissipation effect to providing users with a more secure Internet environment.

     Functional Feature

    1. In compliant with IEEE802.3ah and ITU - T G.984 standard
    2. Support ONU auto-discovery/Link detection/remote upgrade of software
    3. Support SN and LOID+Password multiple registration methods
    4. Support port VLAN configuration
    5. Support port-based rate limitation and bandwidth control
    6. Support MAC address learning
    7. Support MAC address learning account limit
    8. Support VLAN transparent/tag/translate/trunk
    9. Support broadcasting storm resistance function
    10. Support igmp transparent/snooping/proxy mode
    11. Support Dynamic Bandwidth Allocation (DBA)
    12. Support AES encryption and decryption
    13. Support power-off alarm function ,easy for link problem detection
    14. Support Firewall
    15. Support MAC address/URL filter
    16. Support remote WEB/Telnet access control
    17. Single-fiber access, provides internet, WIFI multiple service.
    18. EMS network management based on SNMP ,convenient for maintenance

    Product interface and LED definitions

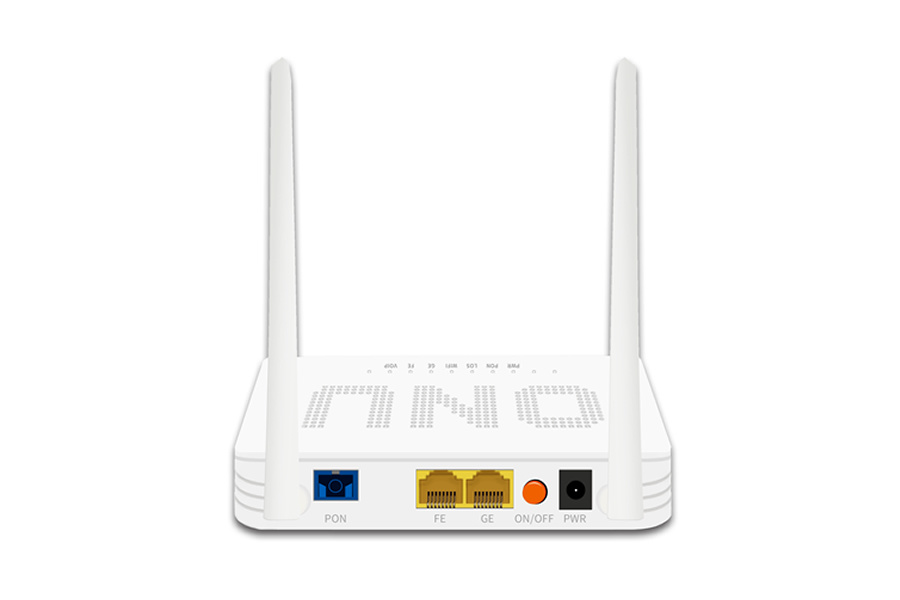

    Product interface:

    interface

    Description

    1

    PWR

    Connect with power adapter (DC12 V)

    2

    ON/OFF

    Power turn on/off

    3

    GE/FE

    RJ45 Port connects to local internet

    4

    PON

    Connect PON port with internet by SC type, single mode optical fiber cable



    LED definitions:

    Indicator

    Description

    1

    PWR

    On: The ONT is power on;

    Off: The ONT is Power off;

    2

    PON

    On: Success to register to OLT;

    Blinking: In process of registering to OLT;

    Off:Failed to register to OLT or no normal optical signal input;

    3

    LOS

    On: Optical power lower than receiver sensitivity;

    Off: Optical in normal;

    4

    WIFI

    On: WiFi turn on

    Blink: WiFi turn on and with ongoing data transmission

    Off: Device is power off or WiFi turn off

    5

    GE/FE

    On: Ethernet connection is normal;

    Blinking: Data is being transmitted through the Ethernet port;

    Off: Ethernet connection is not set up;

    Specification

    Item

    Parameter

    PON Interface

    1. Single mode single fiber
    2. GPON：FSAN G.984.2 standard,Class B+
    3. EPON：1000BASE-PX20+ symmetric
    4. GPON：2.488Gbps/1.244Gbps downstream/upstream
    5. EPON：1.25Gbps downstream/upstream
    6. Wavelength : Transmit: 1310nm   Receiver: 1490nm
    7. Receiving sensitivity : GPON：-28dBm     EPON：-27dBm
    8. Saturated power : GPON：-8dBm      EPON：-3dBm
    9. Transmitting power : GPON：0.5～5dBm  EPON:0～4dBm

    WIFI

    1.  WIFI performance parameters
    2. IEEE802.11b/g/n
    3. Max rate: 300M
    4. Max TX power: 17dBm
    5. Wireless
    6. 4*SSID
    7. 2*2 MIMO
    8. Choose channel automatically

    User Ethernet
    Interface

    1. 1*10/100/1000M and 1*10/100M auto-negotiation RJ45 ports
    2. Full Duplex / Half-Duplex
    3. RJ45, Auto-MDI/MDI-X

    Business
    Capability

    1. Register
    2. Auto-discovery/Link detection/Remote upgrade software
    3. Auto/MAC/SN/LOID+Password authentication
    4. Multicast
    5. IGMP V2
    6. IGMP VLAN
    7. IGMP transparent/Snooping/Proxy
    8. Security
    9. Firewall
    10. MAC address/URL filter
    11. Remote WEB/Telnet access control
    12. Switch
    13. MAC address learning
    14. MAC address learning account limit
    15. Port isolation
    16. Port flow control
    17. Broadcast storm suppression
    18. VLAN transparent/tag/translate/trunk

    Network
    Management

    1. EPON :OAM / WEB / TR069 / Telnet
    2. GPON:OMCI / WEB / TR069 / Telnet

    Power Interface

    1. External 12VDC/1A power supply adapter
    2. Power consumption: <8W

    Dimension

    1. 140mm(L) *90mm(W)*30.5mm (H)

    Environmental
    Specifications

    1. Operating temperature: 0 to 40ºC
    2. Operating humidity: 10% to 90%(Non-condensing)



    Network application

    1. Typical Business：Internet、WIFI
    2. Typical Solution：FTTH

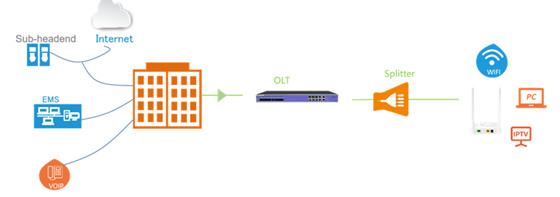

    Figure: YTONU-3412-1W Application Diagram

    Ordering Information

    Product Name

    Product Model

    Descriptions

    1GE +1FE+WIFI

    YTONU-3412-1W

    1*10/100/1000Mbps+1*10/100Mbps Ethernet interface, 1*PON interface , provides internet, WIFI multiple service.
