DOCSIS 3.1 OUTDOOR Modem Gateway
+
  • DOCSIS 3.1 OUTDOOR Modem Gateway

DOCSIS 3.1 OUTDOOR Modem Gateway

Key words:

DOCSIS

Classification:

DOCSIS

Contact Us
  • Product Description
  •



    item

    Parameter







    Basics



    Standard

    DOCSIS 3.1

    RF Interface

    F – Female, 75 OHM

    Ethernet Interface

    4-Port RJ45

    Power Input

    Cable powered 40 to120 AC 50 /60Hz Sin or Quasi wave 90~264VAC

    Operating Temperature

    -40 ~ +60°C

    Size

    28.5 x 20.5 x 12













    Downstream



    Frequency Range

    (edge to edge)

    108 -1218 MHz

    258 -1218 MHz

    Input Impedance

    75Ω

    Input Return Loss

    ≥ 6 dB(across freq. range)





    SC-QAM channels



    Number of Channels

    32 max

    Level Range (one channel)

    North Am (64 QAM and 256 QAM): -15 to +15 dBmV

    EURO (64 QAM): -17 to +13 dBmV

    EURO (256 QAM): -13 to +17 dBmV

    Modulation Type

    64 QAM and 256 QAM

    Symbol Rate (nominal)

    North Am (64 QAM): 5.056941 Msym/s

    North Am (256 QAM): 5.360537 Msym/s

    EURO (64 QAM and 256 QAM): 6.952 Msym/s

    Bandwidth

    North Am (64 QAM/256QAM with α=0.18/0.12): 6 MHz

    EURO (64 QAM/256QAM with α=0.15): 8 MHz



    OFDM channels

    Signal Type

    OFDM

    Max. OFDM Channel Bandwidth

    192 MHz



    Number of OFDM channels

    2

    Modulation Type

    QPSK, 16-QAM, 64-QAM,128-QAM, 256-QAM, 512-QAM, 1024-QAM, 2048-QAM, 4096-QAM













    Upstream



    Frequency Range

    (edge to edge)

    5-85 MHz

    5-204 MHz

    Output Impedance

    75Ω

    Max. Transmit Level

    +65 dBmV

    Output Return Loss

    ≥ 6 dB





    SC-QAM channels



    Signal Type

    TDMA, S-CDMA

    Number of Channels

    8max

    Modulation Type

    QPSK, 8 QAM, 16 QAM, 32 QAM, 64 QAM, and 128 QAM



    OFDM channels

    Signal Type

    OFDMA

    Max. OFDMA Channel Bandwidth

    96 MHz



    Min. OFDMA

    Occupied

    Bandwidth

    6.4 MHz (for 25 KHz subcarrier spacing)

    10 MHz (for 50 KHz subcarrier spacing)



    Number of Independently configurable

    2

    Subcarrier Channel Spacing

    25, 50



    Modulation Type

    BPSK, QPSK, 8-QAM, 16-QAM, 32-QAM, 64-QAM,128-QAM, 256-QAM, 512-QAM, 1024-QAM, 2048-QAM, 4096-QAM











    POE+



    POE Ports

    2/4 Configurable

    Standard

    IEEE 802.3af and IEEE 802.3at

    Mode

    Support Mode A and Mode B, and configurable

    Mode A

    Twisted-pair Ethernet connection allows power to be transmitted on the data conductors. (Pins 1, 2, 3,and 6)

    Mode B

    10BASE-T and 100BASE-TXonly requires two pairs out of four pairs for data transmissions, therefore power transmitted on unused pairs. (Pins 4, 5, 7, and 8)

    POE Default

    Semi-Auto (Default Factory Setting)

    POE Output Capacity

    PSE Side: 30W (Max.) for 2 ports + 15.4W (Max.) for 2 ports, Configurable

    PD  Side: 25.45W (Max.) for 2 ports + 12.95W (Max.)for 2 ports

    POE Output Voltage

    +54V

    Max. Current

    600mA per port

    Ethernet Cable

    CAT-5E or Better

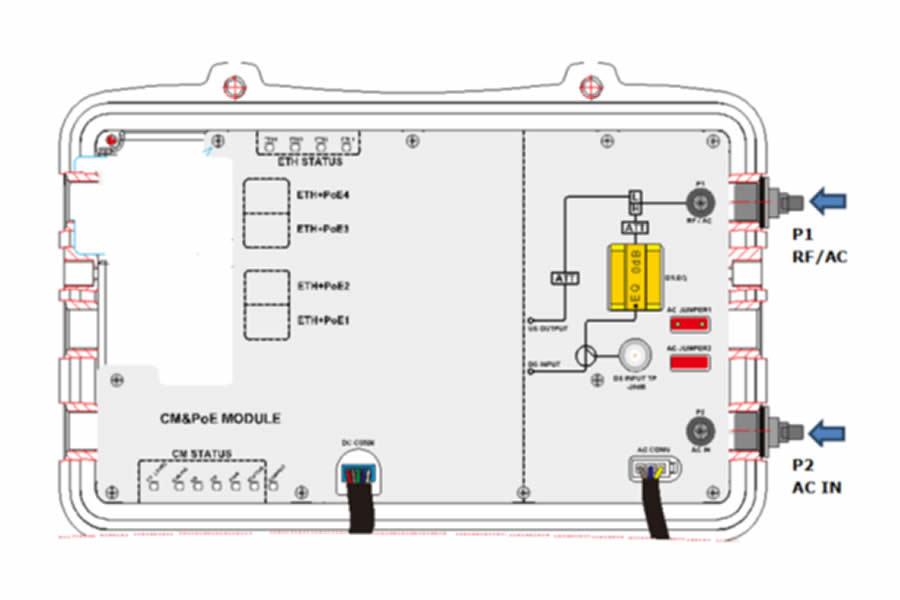

    Power Method

    Power Supply

    Power Location

    Jumper

    Cable Powered

    YT-100Y



    40~120VAC

    50/60Hz Sin or Quasi wave

    P1 RF/AC



    AC JUMPER1



    Cable Powered

    YT-100Y



    40~120VAC

    50/60Hz Sin or Quasi wave

    P2 AC IN



    AC JUMPER2



    AC Powered

    YT-100H

    90~264VAC

    P3

    No AC JUMPER Used
