ETHERNET TO COAX MOCA 2.5 NETWORK ADAPTER
ETHERNET TO COAX MOCA 2.5 NETWORK ADAPTER
+
  • ETHERNET TO COAX MOCA 2.5 NETWORK ADAPTER
  • ETHERNET TO COAX MOCA 2.5 NETWORK ADAPTER

ETHERNET TO COAX MOCA 2.5 NETWORK ADAPTER

Key words:

MoCA 2.5 Network Adapter

Classification:

MoCA 2.5 Network Adapter

Contact Us
  • Product Description
  • Features
  • Parameters
  • The bonded MoCA channels can provide 2.5Gbps real traffic throughput in your home. With MoCA enabled products, you can stream full HD/ 4K videos to your devices. You also can enjoy the high speed online gaming, even VR games.

    Features



    ■  Complied with MoCA2.5 standard, having 2.5Gbps MAC layer transmission rate, respectively.

    ■ One Coax In/Out port, one Video output port, one or multiple Ethernet port to meet differing networking requirement

    ■ Plug and play.

    ■ Support up to 16 adaptors to be able to communicate with each others at same time.

    ■ Uses existing coax cabling

    ■ Coexistence with cable TV services

    ■  Support TR069/HTTP management function.

    ■  Support IPV4/IPV6

    ■  Support MPS (MoCA Protected Setup) function with Push-button pairing

    ■ Having auto and dynamic selecting main control adaptor function, main control adaptor can be automatically reselected when it’s down.



    Specification

    Item

    Parameters

    MoCA System

    Chip technology

    EN3710

    Channel Bandwidth

    5*100MHz

    Output Frequency

    D-Band Extended1125MHz1675MHz

    Max. Attenuation

    75 dB

    MAC Rate

    2.5Gbps

    Cable Interface

    Cable Input

    F-type, 75 ohm

    To TV (Loop through)

    F-type, 75 ohm

    Diplexer

    Low pass

    Insertion loss

    Return loss

    5~1002 MHz

    1dB Max.

    14dB Min.

    High pass

    Insertion loss

    Return loss

    1125~1675 MHz

    2.5dB Max.

    12dB Min.

    Ethernet Interface

    RJ-45

    10/100/1000Mbps or  2.5Gbps

    Ext. power adaptor

    Main input

    100 – 240 V/AC~, 50/60 Hz

    DC output

    12V/0.5A  or 5V/1A

    Power Consumption

    ≤ 5 W

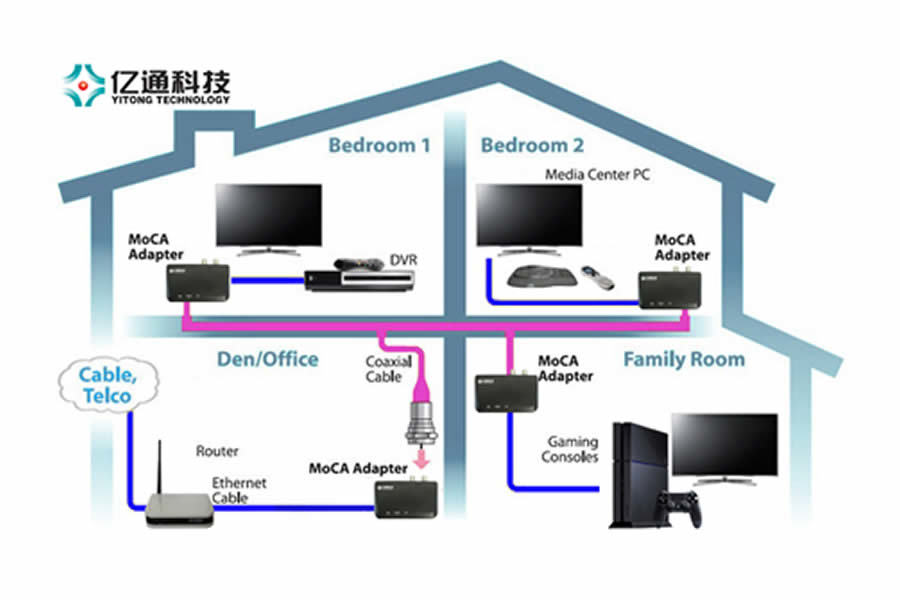

    Network Construction

    Ordering information

    Product Name

    Product Model

    Descriptions

    1GE

    YTMC-51N2-M3

    1*10/100/1000Mbps Ethernet interface, One mixed-signal port and one TV signal port.

    2*GE

    YTMC-51N2-D

    2*10/100/1000Mbps Ethernet interface, One mixed-signal port and one TV signal port.

    4*GE

    YTMC-51N4-D

    4*10/100/1000Mbps Ethernet interface, One mixed-signal port and one TV signal port.

    1*2.5GE

    YTMC-51N1-D2

    1*1.0/2.5Gbps Ethernet interface, One mixed-signal port and one TV signal port.

    2*2.5GE

    YTMC-51N2-D2

    2*1.0/2.5Gbps Ethernet interface, One mixed-signal port and one TV signal port.
